Yamaha LAN Monitor

LAN Mapping giúp hiển thị tổng quan toàn bộ mạng

Để hiểu được nhiều bộ chuyển đổi được lắp đặt tại những vị trí khác nhau kết nối với nhau như thế nào, và các thiết bị mạng kết nối như thế nào với các bộ chuyển đổi đó là một nhiệm vụ khó khăn và cần nhiều thời gian. Yamaha LAN Monitor hiển thị rõ cấu trúc liên kết mạng tổng thể, cung cấp cho người dùng cái nhìn toàn diện về cách các bộ chuyển đổi và thiết bị mạng Dante được kết nối với nhau. Chỉ cần kết nối máy tính với bộ chuyển đổi thuộc hệ SWP/SWR gần nhất và chạy phần mềm Yamaha LAN Monitor.

Port Status and Bandwidth Utilization

The Yamaha Audio Network Monitor includes a port status and bandwidth display that clearly shows the connection status of each network switch port, information about the connected devices, the communication speed at each port, and the bandwidth utilization at each port.

Dante Device Info

Device information and monitoring is also available for any Dante devices connected to SWP1 series switches on the network. The ability to monitor primary and secondary port status as well as transmit and receive flow is important to achieving stable, reliable Dante audio communication. This capability lets you keep an eye on the overall “health” of the network.

1-click Dante Controller Launch

A Dante Controller button at the top of the Yamaha Audio Network Monitor interface lets you launch the Dante Controller with a single click (the Dante Controller software must be installed on the computer). Seamless switching between the Yamaha Audio Network Monitor and Dante Controller provides total Dante network control from a single computer.

Snapshot Function Makes Troubleshooting Easy

You can take a “snapshot” of the network status when set up as required. The software can then automatically keep track of the settings and alert you to any changes. You could take a snapshot of the network during rehearsal, and then you’d be alerted if a cable is disconnected, if a device is turned off, or if a wrong connection is made prior to the performance, for example.

Enhanced Device ID with Icons, Labels, and Comments

Identifying devices connected to a switch by only their IP or MAC address is a difficult and error-prone approach. Connected Dante devices are identified by a Dante icon as well as a device ID previously set up via the Dante Controller software. You can also enter additional info, such as the location of the device, in the Label and Comment fields.

Detailed Switch Settings and Firmware Updates

The web GUI for each device can be recalled to provide access to “deep” settings and allow firmware updates.

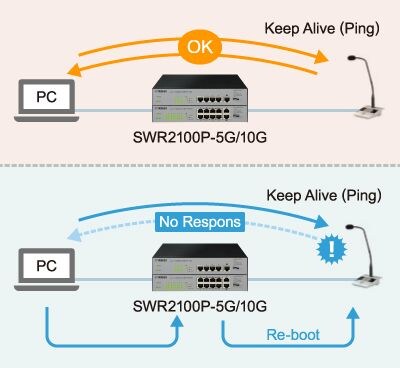

Collectively monitor and remotely restart devices distributed over a wide area

If the monitoring device does not respond to a Ping, it judges that a fault has occurred and automatically stops the PoE power supply to that device and then resumes it. This restarts the monitoring equipment and attempts recovery. By collectively managing the status of the devices distributed over a wide area, it can ensure that equipment management can operate far more smoothly.
