DANTE-MY16-AUD2 16-Channel Dante Network I/O Card

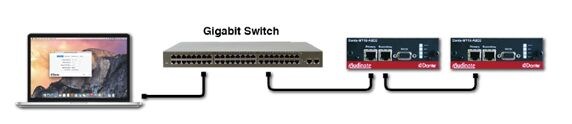

Daisy Chain Configuration(Switched Mode)
![](/vi/files/app_dante-my16-aud2_ph_02_572x124_610786e0d260b6cf91f6a10173405a09.jpg)

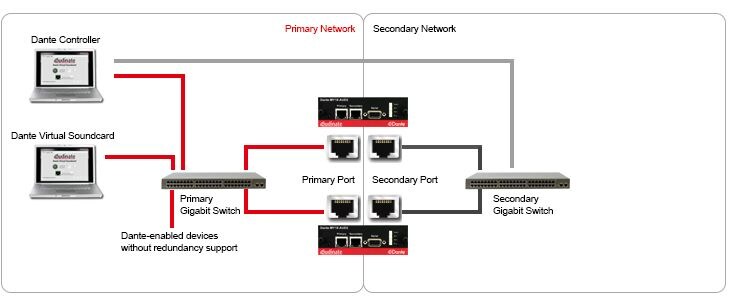

Glitch-free Dante Redundancy
![](/vi/files/app_dante-my16-aud2_ph_01_740x300_6f6e183e8203e946629f8c8d4f3ff684.jpg)

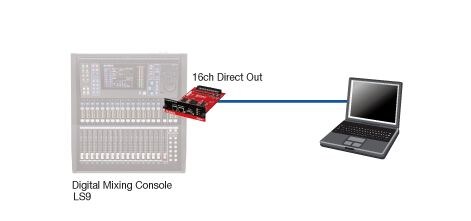

16-channel Live Recording
![](/vi/files/app_dante-my16-aud_ph_01_471x221_686b2b0ae271ef2d19ee461a5d0e2853.jpg)

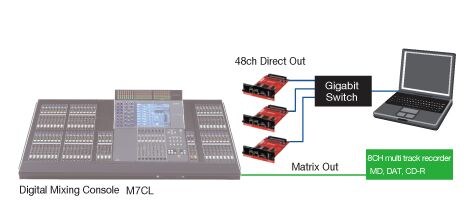

48-channel Live Recording
![](/vi/files/app_dante-my16-aud_ph_02_471x221_b285cf1ce2bf2b912ace7bf717bc83c4.jpg)

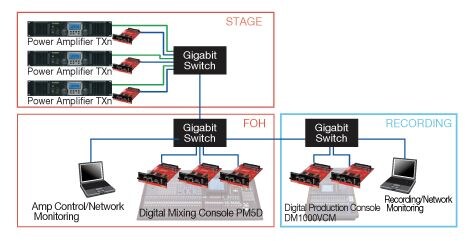

Live SR System
![](/vi/files/app_dante-my16-aud_ph_03_470x241_f23a4b53a9e5c08a2b24720f590b036b.jpg)

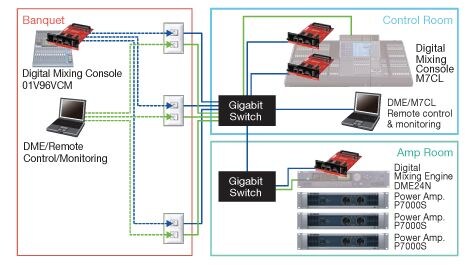

Installed Sound
![](/vi/files/app_dante-my16-aud_ph_04_470x265_b54676d4b3a8b0cd4ddf69b7cb1b3ef9.jpg)
HA Remote Chain Example

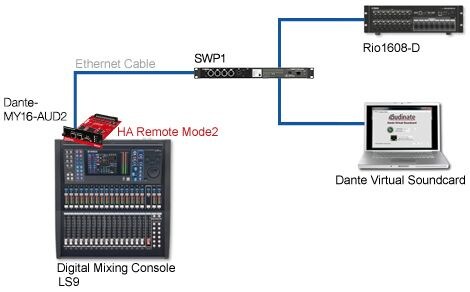

In this figure, a Yamaha LS9 console is acting as the HA Remote controller. It is connected via the primary Ethernet port on the installed Dante-MY16-AUD card to a network switch. The Dante-MY16-AUD card is set to HA Remote Mode 2, via Dante Controller (For detail, please see Dante-MY16-AUD User Guide v1.23)
