NUAGE

Yamaha has been at the forefront of the professional audio industry ever since the PM1000 audio mixer was released in 1975. Products such as the NS10-M STUDIO monitor speakers, the 02R digital mixing console, and the SPX90 effects processor found their way into leading studios around the world, eventually earning reputations that made them "classics" in the field. DAWs (Digital Audio Workstations) became established as the primary working environment for audio production from the mid 90’s through the turn of the century, and in January of 2005 Steinberg Media Technologies ("Steinberg" hereafter), a company that had contributed numerous advanced technologies and solutions to this growing field, became a wholly owned subsidiary of Yamaha. This pivotal fusion led to increasingly concerted development of integrated products and systems. Steinberg was originally established in 1984, rapidly becoming a source of important audio processing standards such as ASIO (Audio Stream In and Out), VST (Virtual Studio Technology), and others. These advanced technologies were incorporated into a number of revolutionary products, including the Cubase and Nuendo DAW applications that are currently favored by more than 1.5 million users worldwide. Joint development between Yamaha and Steinberg has resulted in a number of audio interfaces and controllers that take full advantage of the performance potential of Steinberg DAW software. That synergy between two leaders in audio technology will continue to deliver increasingly advanced solutions for a wide range of applications into the future.

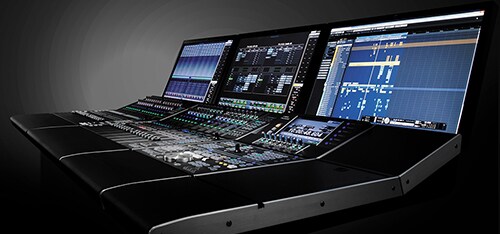

Any standard 24" LCD monitor display* can be used to provide a smooth visual extension of the physical Nuage fader channel strips right into the Nuendo/Cubase mixer window. The continuity between control surface and display achieved by the Extensive Console View concept keeps all controls and parameters in context so the operator can intuitively reach for the right fader, button, or knob while concentrating fully on the job at hand. *Monitor display(s) are not included and must be supplied by the user.

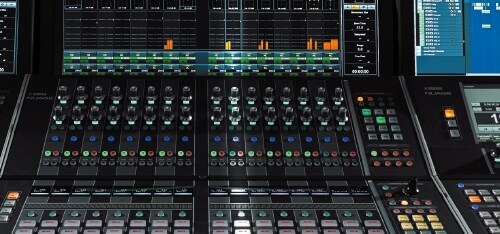

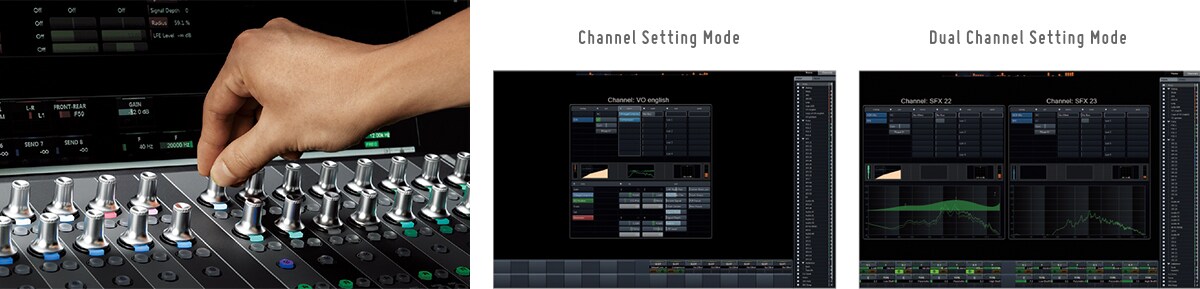

Slide a finger along the Nuage control surface touch slider bar to bring any desired channel into view. The channel name display icon and channel knob color will instantly change to match the Nuendo/Cubase display so you'll always know exactly which channel is currently the focus of mix or edit operations. Channel layout can be easily customized in a number of ways: bring all channels of a specified type up on the Nuage faders with a single button, link multiple channels, move stem or master buses to the leftmost or rightmost faders so they can be accessed whenever needed, and more.

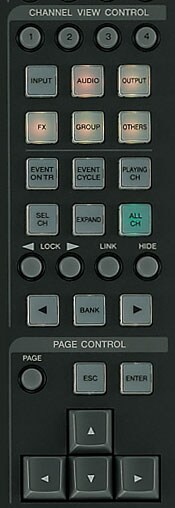

[INPUT] Show/hide input channels[AUDIO] Show/hide audio channels[OUTPUT] Show/hide output channels[FX] Show/hide effect channels[GROUP] Show/hide group channels[OTHERS] Show/hide MIDI channels, instrument channels, and others[EVENT ON TR] Show only tracks that contain audio events while button pressed[EVENT CYCLE] Show only channels with audio events within a cycle while button pressed[PLAYING CH] Show the currently playing channels while button pressed[SEL CH] Show only the selected channel[EXPAND] Show only group, effect, and output channels routed to the selected channel

The Nuendo/Cubase Control Room feature replicates large-console monitoring facilities in software. Control Room is faithfully recreated on the Nuage Master panel, providing a full-function monitoring and communication environment without having to add extra equipment.

- Up to four different monitor environments with different speaker configurations. - MIX, EXTERNAL INPUT, and CUE 1-4 monitor source selection. - Eight input/output buses can be registered and switched for the MIX source. - Six external sources can be registered and switched for the EXTERNAL INPUT source. - Talkback channel and headphone output included. - Level display can be switched between the Nuendo/Cubase level (dB) and SPL.

Although Nuage is primarily designed to work with a Steinberg Nuendo or Cubase DAW, the NUAGE PT Bridge driver allows efficient operation with Avid Pro Tools as well.* In addition to basic DAW control, it is possible to control plug-ins and assign shortcut keys to the Nuage user assignable buttons. Pro Tools can be implemented as the system's main DAW, or Nuendo can be the main DAW with Pro Tools also available to open and edit previously created Pro Tools sessions or accommodate outside engineers who bring in Pro Tools sessions. *As of July 2015 compatibility is provided with Mac OS editions of Pro Tools 10 through 12 and Pro Tools HD 10 through 12. *Nuendo or Cubase must be assigned as DAW A. Up to two Pro Tools instances can be simultaneously used per system. *Refer to the Nuage owner's manual for information on Pro Tools parameters that can be controlled from Nuage.

Nuage provides full support for the VST MultiPanner 3D surround plug-in included with Steinberg’s Nuendo. The VST MultiPanner interface is faithfully reproduced on the Nuage Master touch screen, providing an ideal environment for Dolby Atmos surround production and bringing Nuage up to speed with today’s fastest-growing immersive surround format. VST MultiPanner makes it possible to work on a 9.1 channel bed mix and an object mix with up to 118 audio objects via a single display. As a project progresses the operator can switch between bed and object modes without having to redo the panning. Top View and Rear View displays make it easy to visualize the positions of audio images within the sound stage in three dimensions. A comprehensive selection of panning trajectory presets is also provided for smooth, efficient sound design. Experience the cutting edge of 3D audio.

Nuage supports remote control of Yamaha’s MMP1 Studio Monitor Management System so that source selection, levels, downmix and dimmer switching, talkback, and other functions can be controlled directly from physical controls on a Nuage Master or Nuage Fader unit. And because these functions can be accessed even when there is no computer or DAW online, monitor section operation is as direct and immediate as on a mixing console.

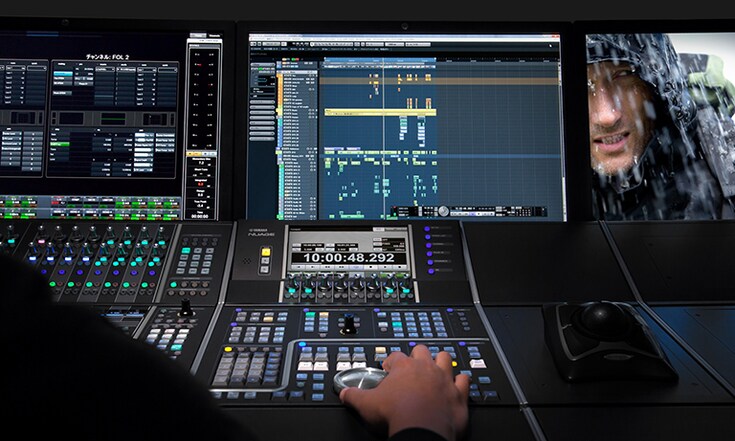

The Nuage development team believes that a great console needs to offer more than features and functionality. It must also have sophisticated visual appeal that, as the centerpiece of the studio, will add a touch of class to the environment . That "atmosphere" is important whether a client is in the room or a creator is working long hours alone. The elegantly reserved design of the Nuage system expresses its advanced capabilities while solidly anchoring the visual space. Several product design awards from around the globe attest to its success.

Nuage Workspace units feature dimensions and design that are a perfect match for the Nuage Fader and Nuage Master units, allowing a keyboard, surround panner, 19" rack mount devices, and other custom extras to be added to a Nuage system while maintaining overall workflow and visual unity. Two Nuage Workspace units are available: a large model that is the same size as the Nuage fader unit, and a small model that can be added to a Nuage Master unit to match the width of a standard 24" monitor display. The palm rests on the Nuage Fader unit and large Nuage Workspace unit include a compartment that can house a computer keyboard. *The photo shows a custom installation.

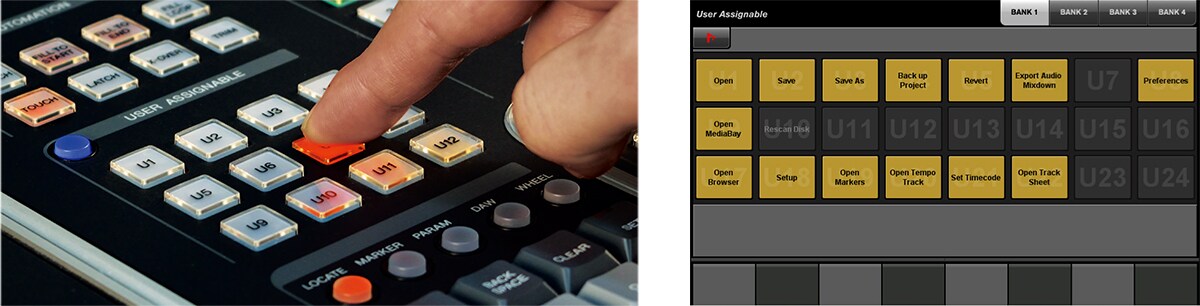

[AUTOMATION] : Provides access to automation functions. [CHANNEL STRIP] : Each channel strip has a touch-sensitive 100mm motor fader, two multi-function knobs, and a channel name/icon/color display. [CHANNEL VIEW CONTROL] : Selects the channel category to be controlled by the panel faders. [CONTROL ROOM] : Allows operation of the Nuendo/Cubase Control Room feature for monitor and communication control. [DAW SELECT] : Selects between up to three connected DAWs. [FLIP] : Allows the parameters assigned to the knobs to be controlled via the faders. [PAGE CONTROL] : Controls display cursor movement and screen switching. [SECTION CONTROL] : Selects the parameters to be controlled by the multi-function knobs. [UNIT LINK] : Links or separates operation of up to three units. [USER ASSIGNABLE] : Allows unrestricted shortcut assignment. [WORKSPACE] : Recalls pre-programmed DAW window layouts.

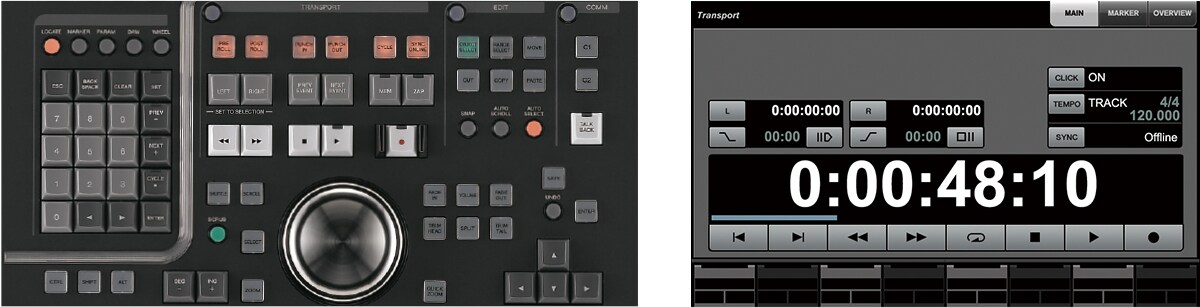

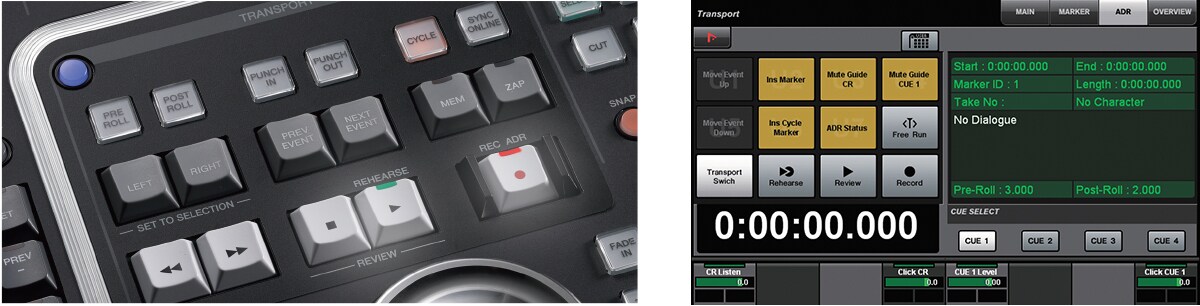

[AUTOMATION] : Provides access to automation functions. [COMMUNICATION] : Assignment and control of the Control Room talkback function. [CONTROL ROOM] : Links to the Nuendo/Cubase Control Room feature, allowing switching between monitor speakers, downmixes, and more. [CUES] : Switches Control Room cues 1-4 on or off.[DAW SELECT] : Selects between up to three connected DAWs. [EDIT] : Allows object/region selection, copy/paste editing, and more. [GENERAL CONTROL] : Project file save, cursor movement, and other operations. [JOG WHEEL] : Six modes and seven functions control a wide range of parameters. [MONITOR SOURCE] : Switches Control Room sources (8 x EXTERNAL INPUT, 8 x MIX, 4 x CUE). [MULTI FUNCTION DISPLAY] : Touch screen and knob provide access to all major parameters and operations. [NUMERIC PAD] : Switches between six modes, allows numeric cursor and marker position entry, and more. [TRANSPORT] : Transport control, punch in/out, and project window recall. [USER ASSIGNABLE] : Assigns shortcuts to the 12 user assignable buttons.

True sonic creativity can only begin with a faithful, uncolored reproduction of the source. Sounds produced in the studio must first be captured accurately, and then the artistry can begin. This fundamental Yamaha design policy is fully inherited in the Nuage audio interface. JetPLL™ technology for minimal jitter, precision DA converters with 32-bit processing, and scrupulous parts selection are complemented by exhaustive listening tests and fine tuning by some of the best ears in the business. No effort has been spared in ensuring that Nuage I/O is capable of delivering unrivaled quality for any type of production.

The Nuendo DAW at the heart of the Nuage system is well known as an advanced surround mixing tool, and to make maximum use of that capability Nuage I/O supports full 7.1 channel surround monitoring. The built-in DSP based bass management, delay, and level adjustment functionality can be used to set up an optimized surround monitoring environment for any studio.

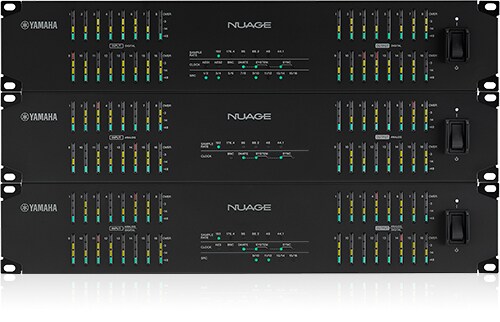

Nuage I/O units are available with three I/O configurations: 16 analog, 16 AES/EBU digital, or 8 analog + 8 digital. These can be combined to provide the right complement of I/O channels for your application. Since up to eight Nuage I/O units can be cascade connected, you can have as many as 128 channels available for large-scale systems. *Cascade cables should be no longer than ten meters in length.

In recent years one audio network has emerged as a favorite that has been adopted by more than 200 licensees around the globe: Dante, developed by Audinate. The use of Dante audio networking technology in Nuage I/O allows high-quality, ultra-low latency audio transmission via standard Ethernet cables in systems that are quick and easy to set up. A secondary port supports redundant audio network connections to keep the network running even if a problem occurs.

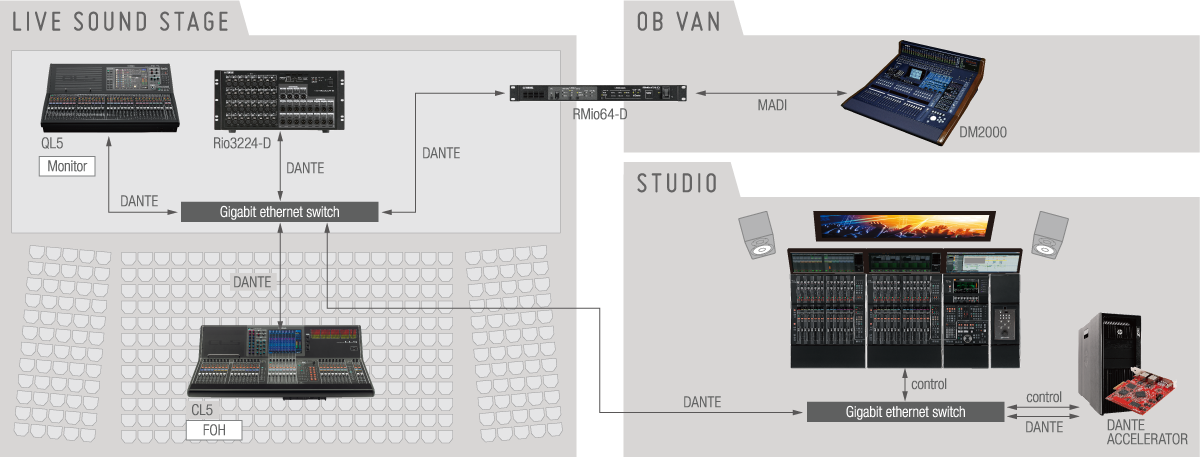

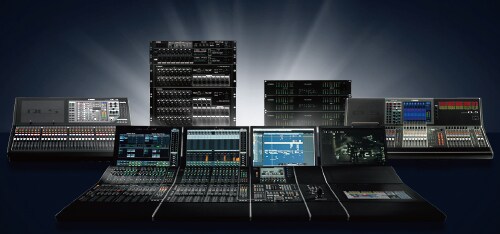

Dante offers advantages that go beyond low-latency multi-channel audio transmission. Compatibility with a wide range of Dante devices means that a vast range of configuration and expansion options are available for any system. For example, the microphone preamplifiers in Dante equipped R series audio interfaces (Rio3224-D/Rio1608-D/Ri8-D/Ro8-D) can be remotely controlled from the Nuage Master or Fader control surface. It is also possible to share audio with CL or QL series consoles connected to the same Dante network. The R series Gain Compensation function ensures that the input levels of other devices are not affected when remote gain adjustments are made. The RMio64-D Dante/MADI converter offers even broader connectivity, allowing seamless connection with MADI based systems as well.

*Vui lòng lưu ý rằng Firmware V4.50 hoặc cập nhật mới hơn của dòng R KHÔNG được Nuage hỗ trợ.

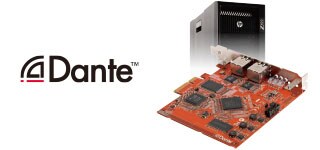

Dante Accelerator, a core component of Nuage systems, is an innovative PCI Express audio interface card (Windows and Mac) that allows multi-channel audio transfer with low latency and high reliability. Working to transfer audio between a Nuage I/O and a computer based DAW, it can handle up to 128 input and output channels at 96 kHz with precise synchronization. A secondary port is available for redundant connections that ensure maximum reliability at all times. *The latest Mac Pro models (late 2013) do not have built-in PCIe slots, but are compatible with Thunderbolt expansion chassis from Magma and Sonnet Technologies that provide PCIe expansion supporting the Dante Accelerator card.
